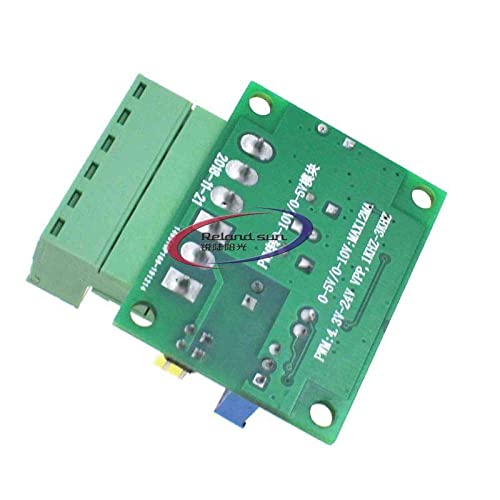

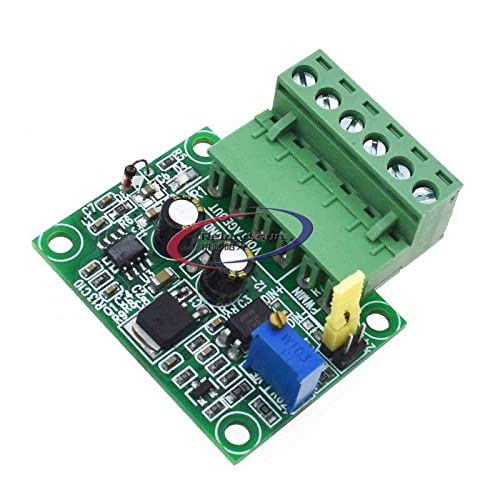

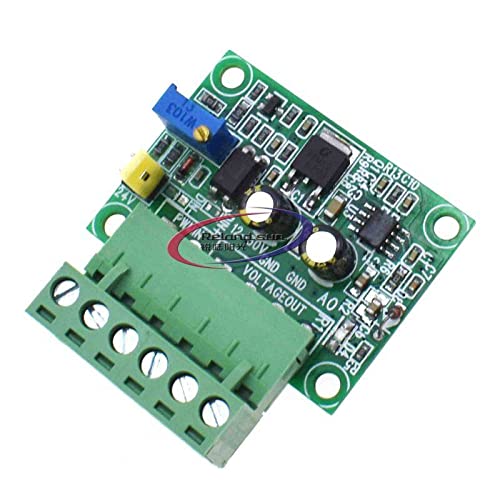

1-3KHZ 0-10V PWM-to- Voltage Module, Signal Digital Voltage Converter, PWM Digital to Analog Converter Module

Specification: Condition: 100% brand new and high quality Current: Max. 12mA Power supply input voltage: 12-30V Size: Approx. 5 x 4.5cm / 1.97 x 1.77inch Using method: PWM signal input frequency range: 1KHZ-3KHZ PWM signal input level range: 4.5V to 10V peak to peak level, jumper inserted at 5V. This type signal mainly for conventional industrial control card (such as for MACH3 board), for 5V the CPU interface. 12 to 24V peak to peak level, jumper inserted at 24V. This type signal mainly for conventional PLC interface 0-10V analog voltage output explanation: When the signal input port is not connected, the output port gives 0V. The first time when we power on this module, we better calibrate it: find a 50% duty ratio signal, connect to DIN-, DIN+, the amplitude matches corresponding jumper. When frequency is at 1kHz ~ 3kHz, use a multi-meter to test AO, GND. The meter should be showing around 5.4V. We adjust the potentiometer on the converter module to make multi-meter shows about 5.4V. After this is done, we have calibrated and matched pulse signal with this converter module. The module has a definition of 0.1V. Output current 10mA. If duty ratio is in opposite to voltage, we can select PWM output pin STEP LOW / ACTIVE for MACH3 software. Package Included: 1 x PWM Signal to Voltage Converter Note: After power-up, when there is no input signal, the output is 0V. There is output only when there is input.

• Work Welll: This PWM-to-voltage module can convert the digital PWM signal into an analog signal 0 ~ 10V. The Input digital signal of this moudle can be 5V or 24V level 0-100% PWM signal, and the Output analog signal can be 0-10v voltage or 0-5v voltage
• Easy to Operate: This PWM-to-Voltage is designed with embedded microcontroller technology, so it is easy to wire and operate, you can also fine-tune the potentiometer at ease
• Widely Use: This PWM to Analog Converter Module can be used in different places. It Can be used for industrial control panel PLC or other signal interface switching, just need to adjust the PWM duty cycle to regulate the output voltage to meet your different needs.
• Suitable Size: Designed with suitable szie, it can be used in different places
• Working Range: PWM signal receiving frequency range: 1KHz ~ 3KHz, take the PWM signal input level range by short-circuiting
