3Pcs JSN-SR04T Integrated Ultrasonic Distance Measuring Sensor Transducer Module Car Backing Radar Waterproof

HC-SR04 Ultrasonic Sensor HC-SR04 Ultrasonic Sensor is a device that can measure the distance to an object by using sound waves. It measures distance by sending out a sound wave at a specific frequency and listening for that sound wave to bounce back. By recording the elapsed time between the sound wave being generated and the sound wave bouncing back, it is possible to calculate the distance between the sonar sensor and the object.Technical Specification Power Supply :+5V DCQuiescent Current :3mAWorking Current:<5mAEffectual Angle:<15°Ranging Distance :2cm - 450 cmResolution :0.3 cmMeasuring Angle:30 degreeNote: The module should be inserted Fortunately, the circuit board re-energized, and avoid the high malfunction, if they have re-energized before they solve.HC-SR04 Themodule works IO trigger ranging to at least 10us high signal;Module automatically sends eight 40kHz square wave, automatically detect whether a signal return;The signal to return, a high IO output, high duration ofTest distance = ((Duration of high level)*(Sonic :340m/s))/22Pcs HC-SR04 Ultrasonic Sensor Module for Arduino (with Mounting Bracket)5Pcs HC-SR04 Ultrasonic Sensor Module for Arduino (with Mounting Bracket)22Pcs 16mm Ultrasonic Transceiver Probe Set（11 Transmitters + 11 Receivers）Ultrasonic sensor module, 98 inches long, waterproof3Pcs Ultrasonic sensor module, 98 inches long, waterproof Function:The HC-SR04 ultrasonic sensor is a device that uses sound waves to measure the distance to an object.The HC-SR04 ultrasonic sensor is a device that uses sound waves to measure the distance to an object.Can emit and receive sound wavesHigh accuracy, 98 inches long, waterproof, ultrasonic sensor integration moduleHigh accuracy, 98 inches long, waterproof, ultrasonic sensor integration moduleUses:for Arduino R3 MEGA Mega2560 Duemilanove Nano Robot XBee ZigBeefor Arduino R3 MEGA Mega2560 Duemilanove Nano Robot XBee ZigBeeSmall size allows installation in narrow placesWidely used in horizontal distance ranging, obstacle avoidance, car reversing sensors, security alarm, automatic control, security and industrial control, intelligent transportation control and artificial intelligence teaching and research.Widely used in horizontal distance ranging, obstacle avoidance, car reversing sensors, security alarm, automatic control, security and industrial control, intelligent transportation control and artificial intelligence teaching and research.

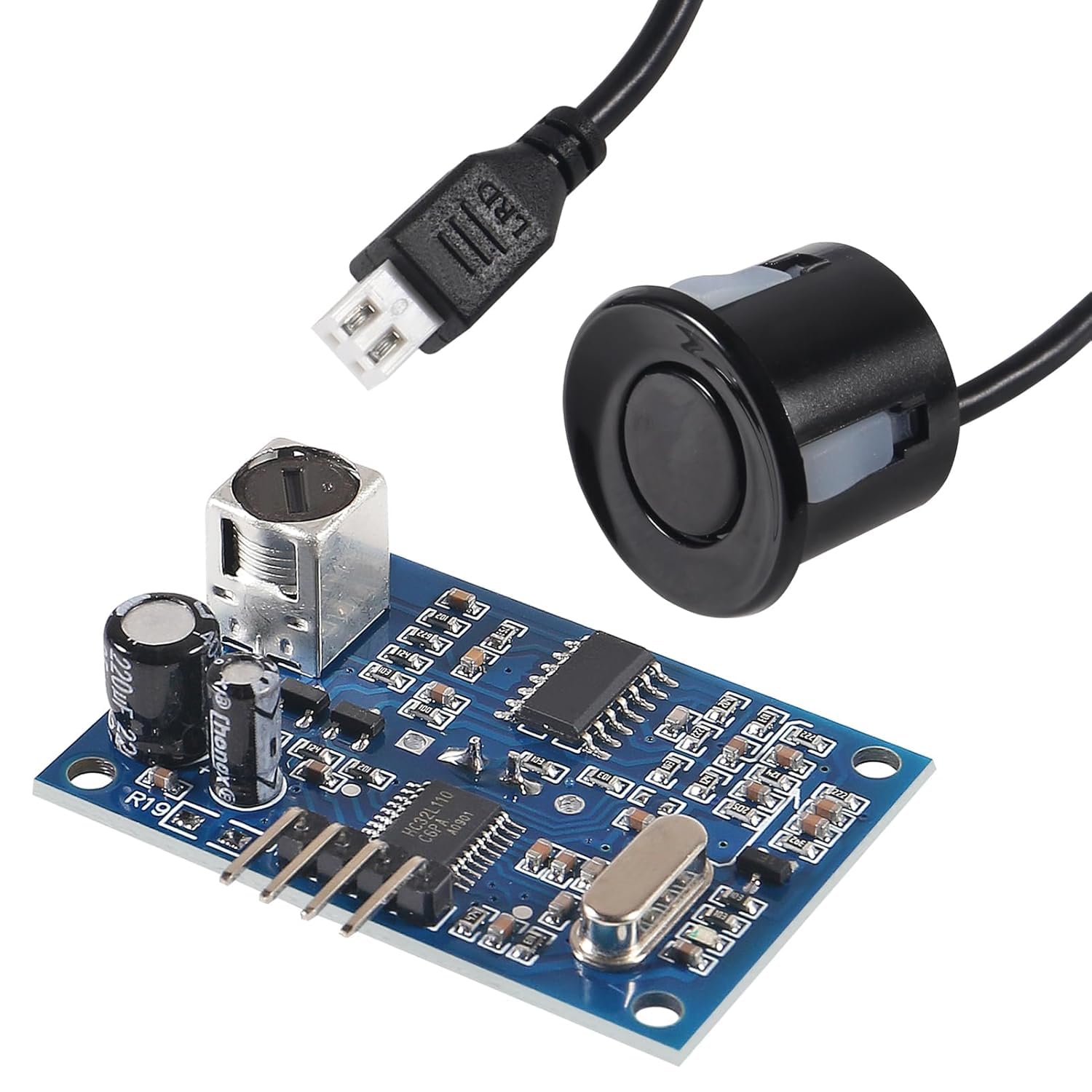

• JSN-SR04T Ultrasonic Distance Measuring Transducer With a waterproof sealed emitter.
• 【Working Voltage】: DC 3-5.5V
• 【Measuring range】: 25cm-4M,
• 【Detecting range】:20cm-600cm（Precision 2mm）Angle75 Degree.
• Function:The HC-SR04 ultrasonic sensor is a device that uses sound waves to measure the distance to an object,which can emit and receive sound waves,High accuracy, 98 inches long, waterproof.
• Uses:For Arduino R3 MEGA Mega2560 Duemilanove Nano Robot XBee ZigBeefor Arduino R3 MEGA Mega2560 Duemilanove Nano Robot XBee ZigBee Small size allows installation in narrow places.
• Applications:It is widely used in horizontal distance ranging, obstacle avoidance, object distance measurement, car reversing sensors, security alarms, automatic control, security and industrial control, Intelligent traffic control and artificial intelligence teaching and research.
