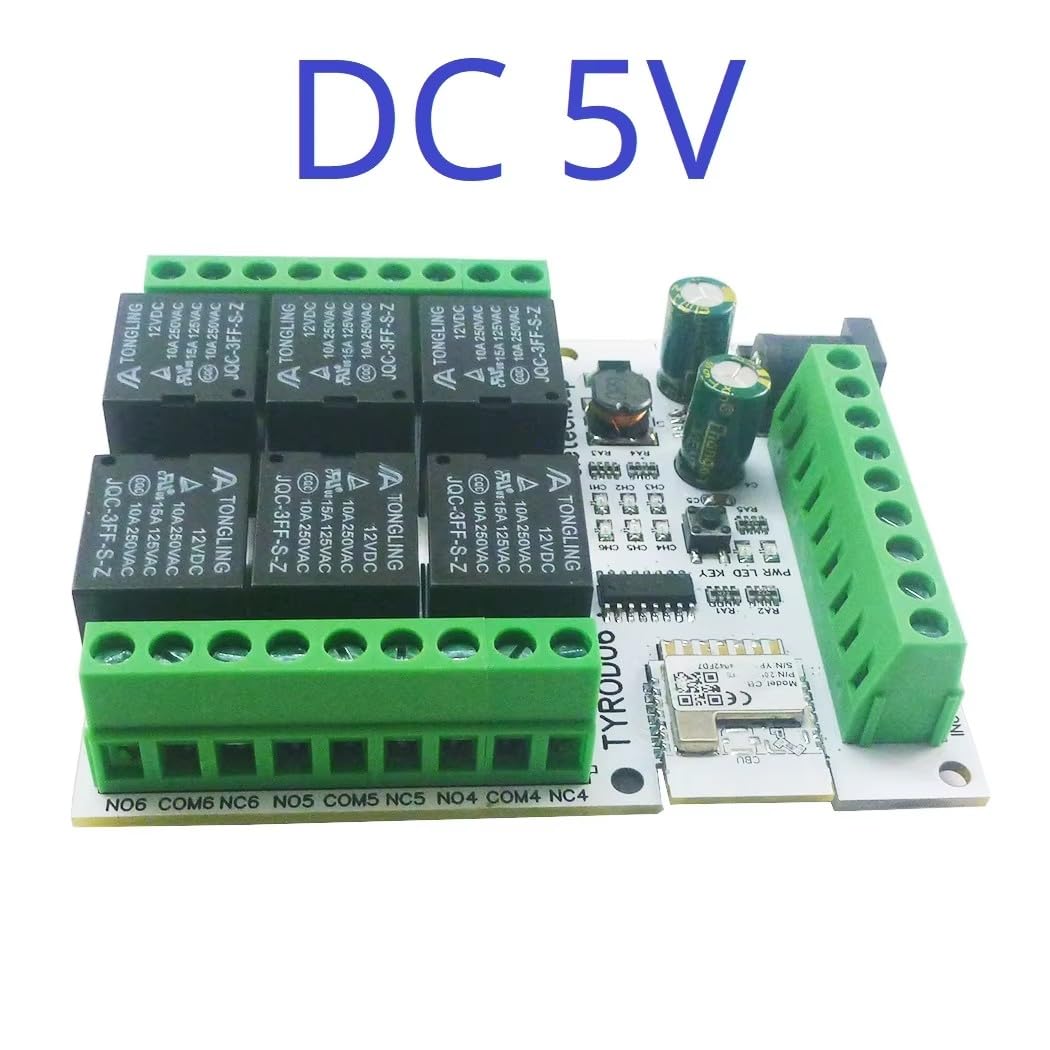

6CH Smart WiFi Relay Module DC 5V-24V 10A TUYA/Smart Life APP Control Timer Function for Home Automation Industrial IoT iOS Android Remote Switch (5V)

TYROD06 is the first WIFI smart relay module developed and designed by eletechsup. It has 6-channel NPN input ports and 6-channel 10A relay dry contact ports. Each output port has three contacts: NC, COM, and NO. Using this module, you can easily achieve ultra-remote control of home appliances.Product parameters:1. Working voltage: DC 5V/12V/24V(Three voltage versions)2. Working current (DC 12V): standby 12MA, WIFI connection status 20-25MA, 1 relay on 48MA, 2 relays on 72MA, 3 relays on 102MA, 4 relays on 129MA, 5 relays on 160MA, 6 relays on 192MA3. WiFi 2.4 ghz b/n/g4. 6 input channels, can directly control relay ON/OFF5. 10A relay outputs with NC COM NO ports6. Support TUYA and smartlife APP, support Android and Apple mobile phone operating systems7 .Through the APP, the following functions can be realized: ON/OFF, Countdown, Timing, Cycle timing, Random timing, Inching switch8. Size: 86*72*20MM9.Weight: 107grams10. Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDCHow to use:1 Download ''Tuya Smart'' OR ''Smart Life'' APP in the App Store2 Follow the prompts of the APP to register and log in to your account3 Follow the video ''TYROD06 first time using Demo'' to configure the network

• Working voltage: DC 5V/12V/24V(Three voltage versions)
• Working current (DC 12V): standby 12MA, WIFI connection status 20-25MA, 1 relay on 48MA, 2 relays on 72MA, 3 relays on 102MA, 4 relays on 129MA, 5 relays on 160MA, 6 relays on 192MA
• WiFi 2.4 ghz b/n/g
• 6 input channels, can directly control relay ON/OFF
• 10A relay outputs with NC COM NO ports
