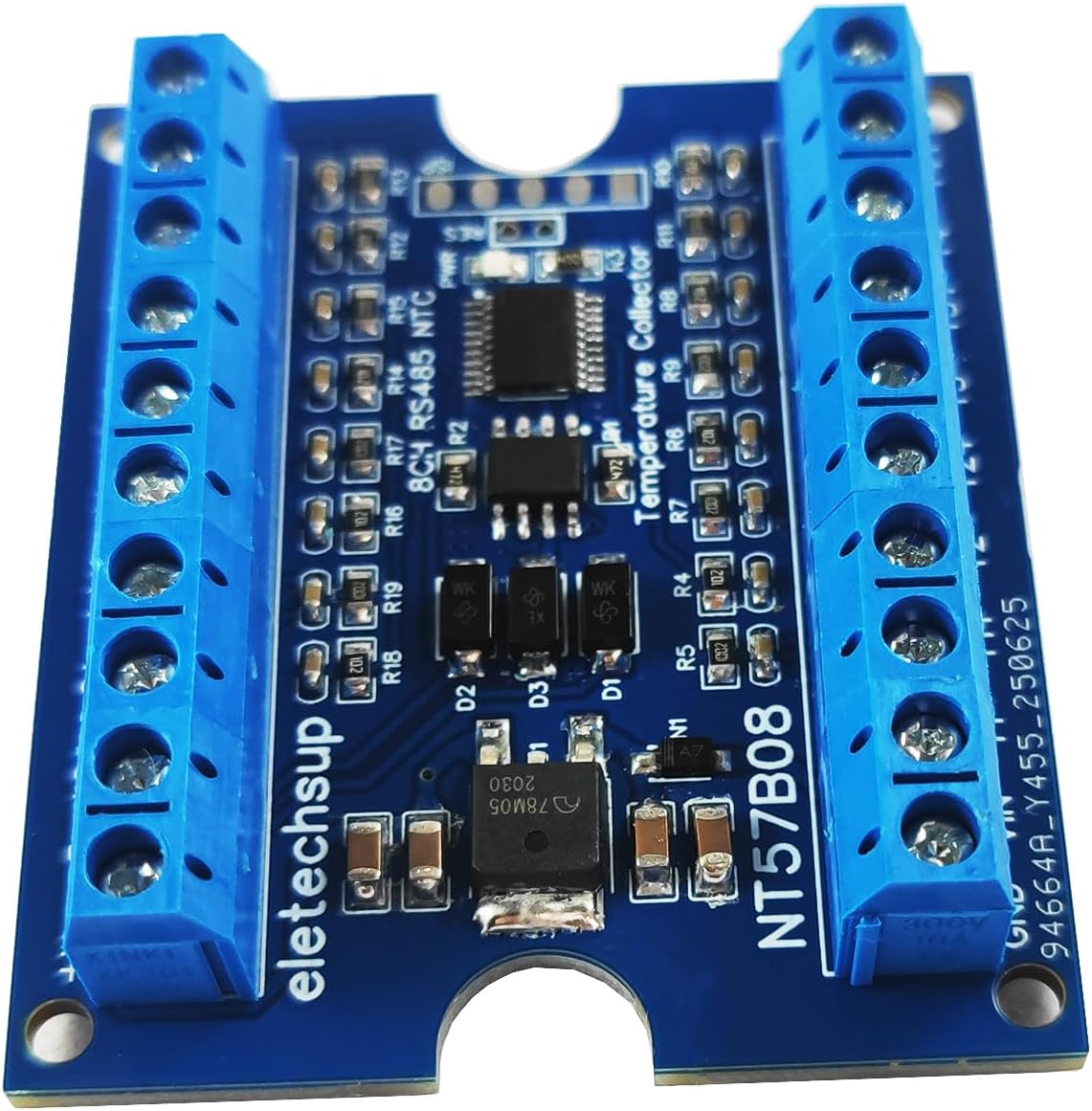

8CH Temperature Resistance Acquisition Board Modbus RTU RS485 NTC Thermocouple Sensors for Paperless Recorder Controller (Only Board)

NT57B08 is a low-cost and cost-effective 8-channel NTC collector designed and produced by eletechsup. It can not only use NTC to measure temperature values, but also directly measure resistance values of 1K-200K ohms. It can be used in IoT, farms and industrial control occasions.Features:Standard MODBUS RTU protocolDC 7-25V wide voltage power supplyMultiple baud rates and check bits can be setTemperature measurement range: -20 ° C to +125 ° CMeasuring temperature and resistance at the same timeUp to 8 channels of temperature can be tested simultaneouslyDescription:1: Operating Voltage : DC 7-25V(DC 9V 12V 15V 24V)2: Operating Current :10-16MA(depending on the number of external NTCs)3: MODBUS RTU Command support 03 04 06 16 function code4: The default baud rate is 9600BPS, the baud rate can be selected by command 2400 4800 19200 38400 57600 115200BPS5 Parity : NONE/EVEN/ODD6:Adapted sensor:10K B3950 1% NTC thermistor, Up to 8CH NTC sensors can be connected at the same time7:Temperature measurement range (using our NTC sensor): -20 ° C to +125 ° C.8:Temperature measurement accuracy (using our NTC sensor): 1%.9:NT57B08 can not only use NTC to measure temperature, but also measure resistance values of 1K-200K ohms.10:Size : 59*50*14(Only Board) ,65*55*26(With DIN Case)11:Weight: 27g (Only Board) ,52g(With DIN Case)NT57B08 can be used to measure temperature with NTC, and it can also be used to measure common resistance value. Temperature measurement range: -40-125℃;Resistance measurement range: 1K-200KΩ.

• ​1: Operating Voltage : DC 7-25V(DC 9V 12V 15V 24V)
• OPERATING SPECS: Works with DC 7-30V power supply and supports NTC 10K 3950 1% sensors for precise temperature readings
• MEASUREMENT RANGE: Capable of measuring temperatures from -20°C to 125°C and resistance from 1K to 200K ohms
• CONNECTIVITY: Terminal block design with clear labeling for easy wiring, supporting cable lengths up to 10 meters
• The default baud rate is 9600BPS, the baud rate can be selected by command 2400 4800 19200 38400 57600 115200BPS
