DEWIN FNB-C2 USB Tester, USB-C Fast Charging Tester 4-50V 6.5A Digital Ammeter Voltmeter Voltage Current Meter

Specifications:Material: CNC aluminum shellVoltage: 4-50VCurrent: 0-6.5APower: 0-240WD+/D- Voltage: 0-3.3VCC1/CC2 Voltage: 0-3.3VCapacity: 0-9999.99AhElectricity consumption: 0-9999.99WhRecording time: 9 hours 0 minutes 0 secondsPacking List:1*USB tester

• Fast charging protocol: The fnb-c2 USB tester covers PD/QC protocol, supports PD3.1 ERP and UFCS/VFCP integrated fast charging protocol, with a power output of up to 50V 6.5A (240W in PD mode), meeting the detection requirements of mainstream fast charging protocols.
• Color display screen: Fnb-c2 usb tester adopts a 1.54-inch high-definition LCD color display screen with 360° gravity sensing function, which can achieve clearer and more intuitive data reading from any viewing angle.
• Multifunctional tester: This USB tester supports multiple tests, including voltage, current, and power monitoring, D+/D- voltage and CC1/CC2 voltage testing, device temperature, capacity, power consumption, and application time testing.
• Powerful functions: The USB tester uses a 20-bit high-precision ADC chip with a resolution of up to 4.8μV/LSB. It supports 10 sets of capacity statistics, automatically calculates device capacity, and can identify false labeling and aging.

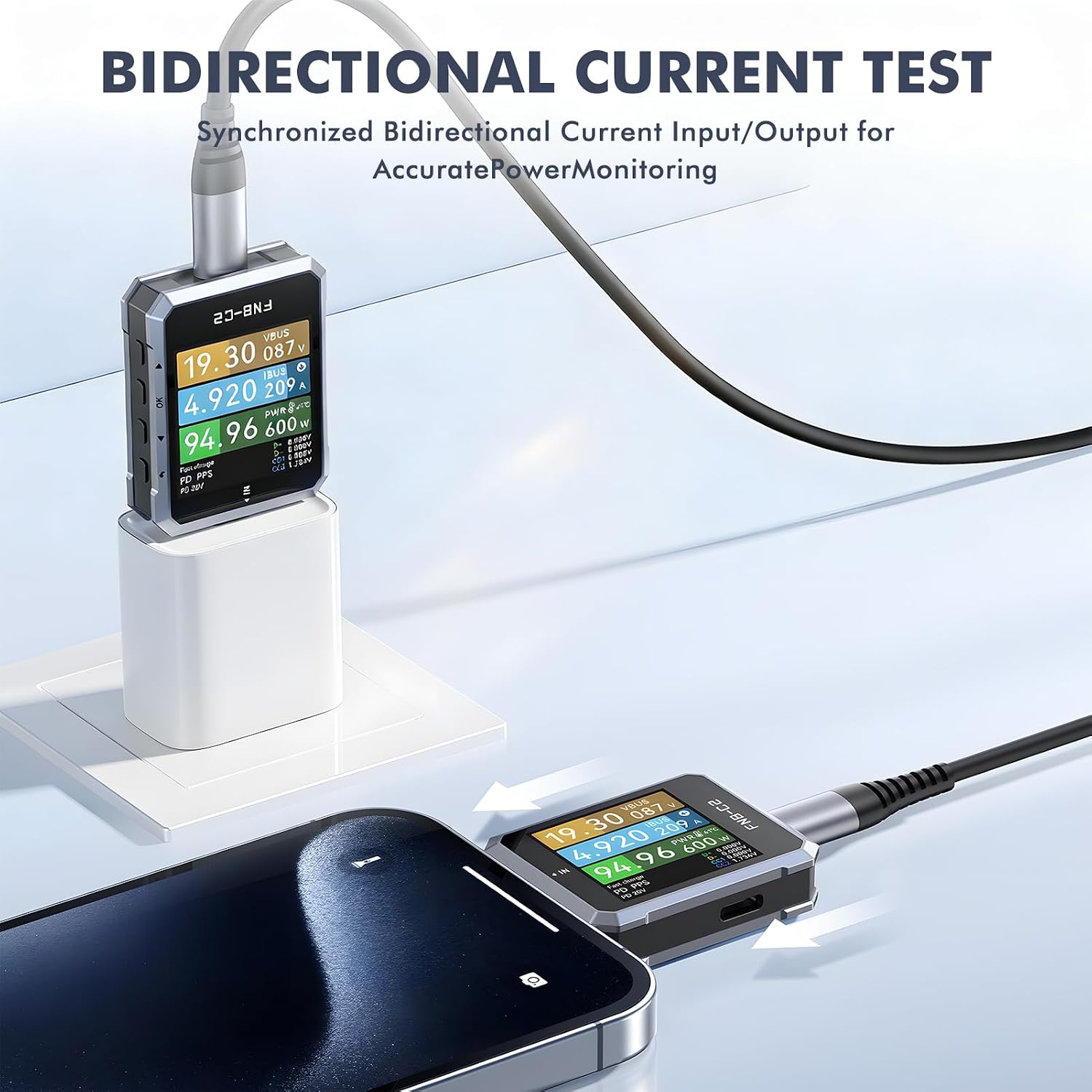

• Bidirectional charging: The USB tester adopts a USB-C port and supports synchronous bidirectional current input and output, accurately controlling bidirectional energy consumption. The HID port is used to connect PCs and computers, making palace data easier to use and analyze more accurately.
