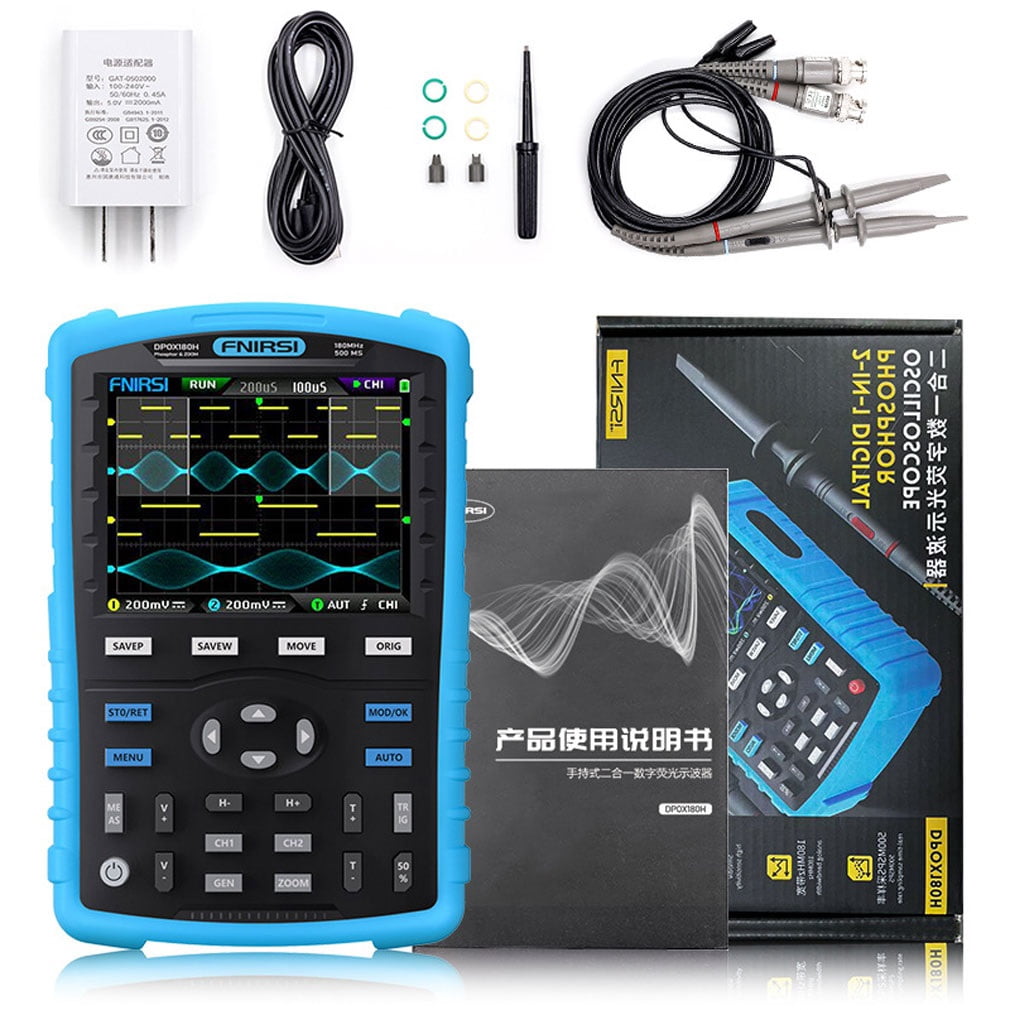

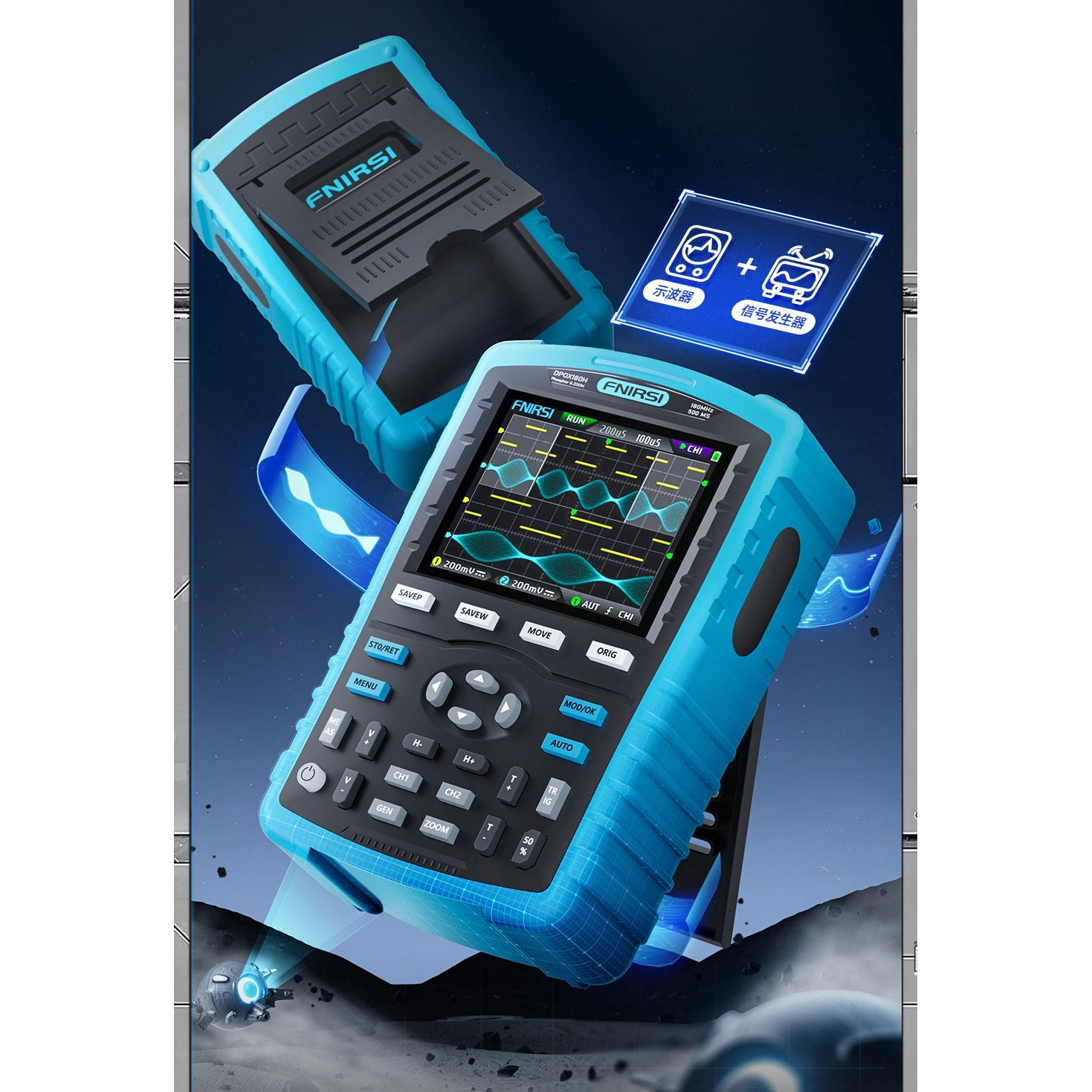

Handheld fluorescent digital oscilloscope dual channel two-in-one small portable instrument auto repair 180M automatic adjustment function

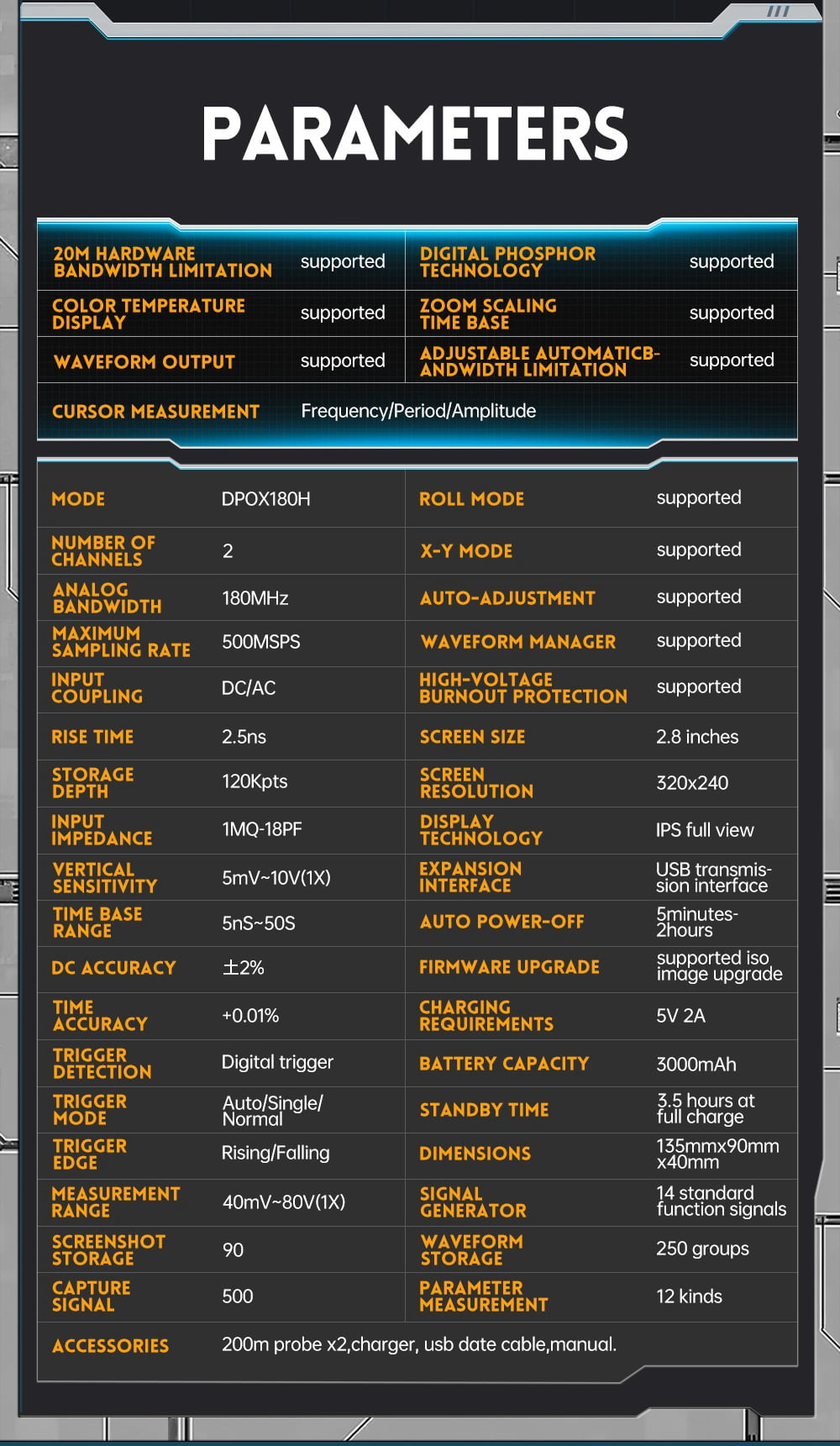

<p>Chopping wave output: support</p><p>Cursor measurement: frequency/period/amplitude</p><p>Digital phosphor technology: support</p><p>Color temperature display technology: support</p><p>Number of channels: 2</p><p>Analog bandwidth: 180MHz</p><p>Maximum sampling rate: 500MSPS</p><p>Input coupling: DC/AC</p><p>Rise time: 1.8nS</p><p>Memory depth: 120Kpts</p><p>Input impedance: 1MQ-18PF</p><p>Vertical sensitivity: 5mV~10V(1X)</p><p>Time base range: 5nS~50S</p><p>Time accuracy: +0.01%</p><p>Trigger architecture: digital trigger</p><p>Trigger Trigger mode: automatic/single/normal</p><p>Trigger edge: rising edge/falling edge</p><p>Test range: 40mV~80V(1X)</p><p>Screenshot storage: 90 pictures</p><p>Cut signal: 500</p><p>X-Y mode: support</p><p>Automatic adjustment: support</p><p>Waveform manager: support</p><p>High voltage burn-proof: 400V withstand voltage for all gears</p><p>Screen size: 2.8 inches</p><p>Screen resolution: 320*240</p><p>Screen display technology: IPS full viewing angle</p><p>Expansion interface: USB transmission interface</p><p>Automatic shutdown: 5 minutes~2 hours</p><p>Firmware upgrade: support .iso Mirror upgrade</p><p>Charging requirements: 5V-2A</p><p>Battery capacity: 3000mah</p><p>Standby time: 3~4 hours after full charge</p><p>Parameter measurement: 12 types</p><p>Body size: 135mm*90mm*40mm</p><p>Signal generator: 14 standard function signals</p><p>Waveform storage: 250 groups</p><p>20M hardware bandwidth limit: support</p><p>ZOOM zoom time base: support</p><p>Adjustable automatic bandwidth limit: support</p><p>Scroll mode: support</p><p>Accessories included: 200M probe X2. Charging head, USB cable, manual</p>

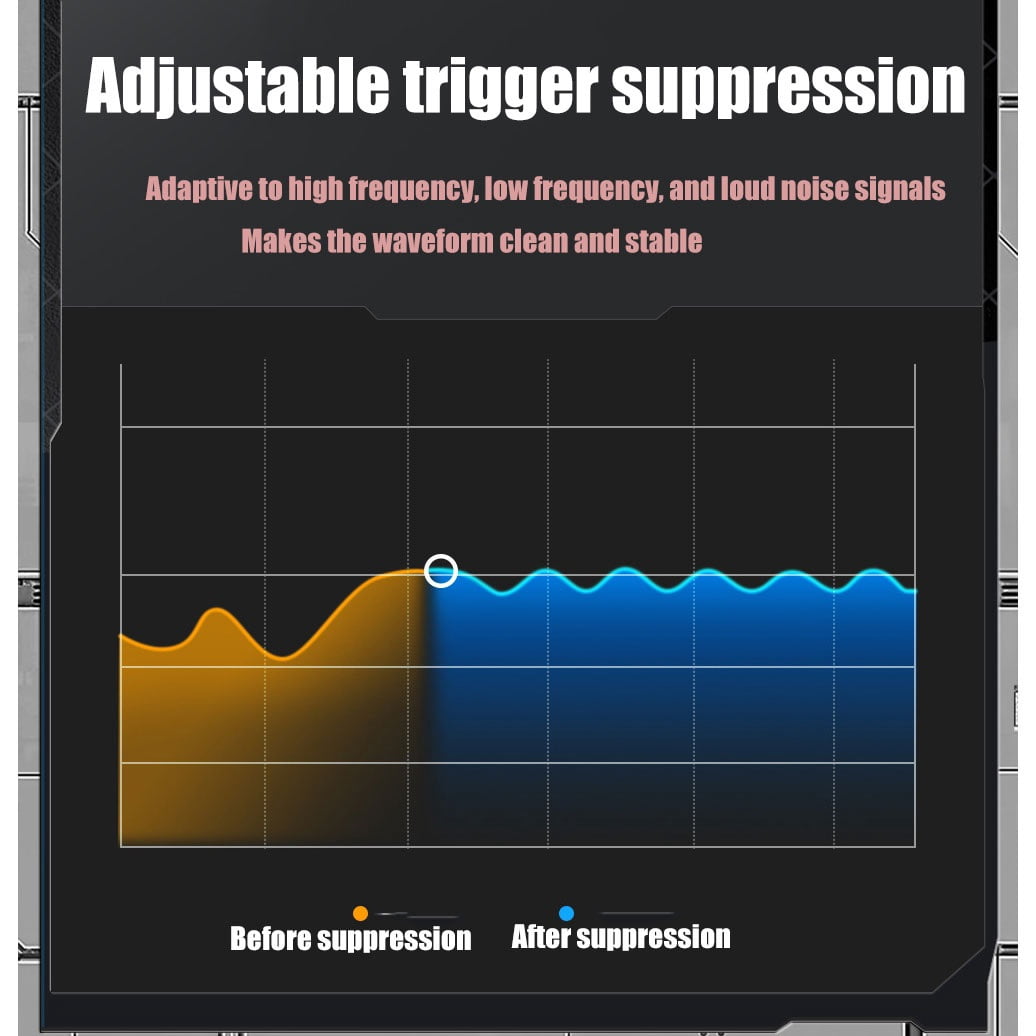

• Adjustable trigger suppression: Adaptive high frequency, low frequency, and large noise signals make the waveform clean and stable

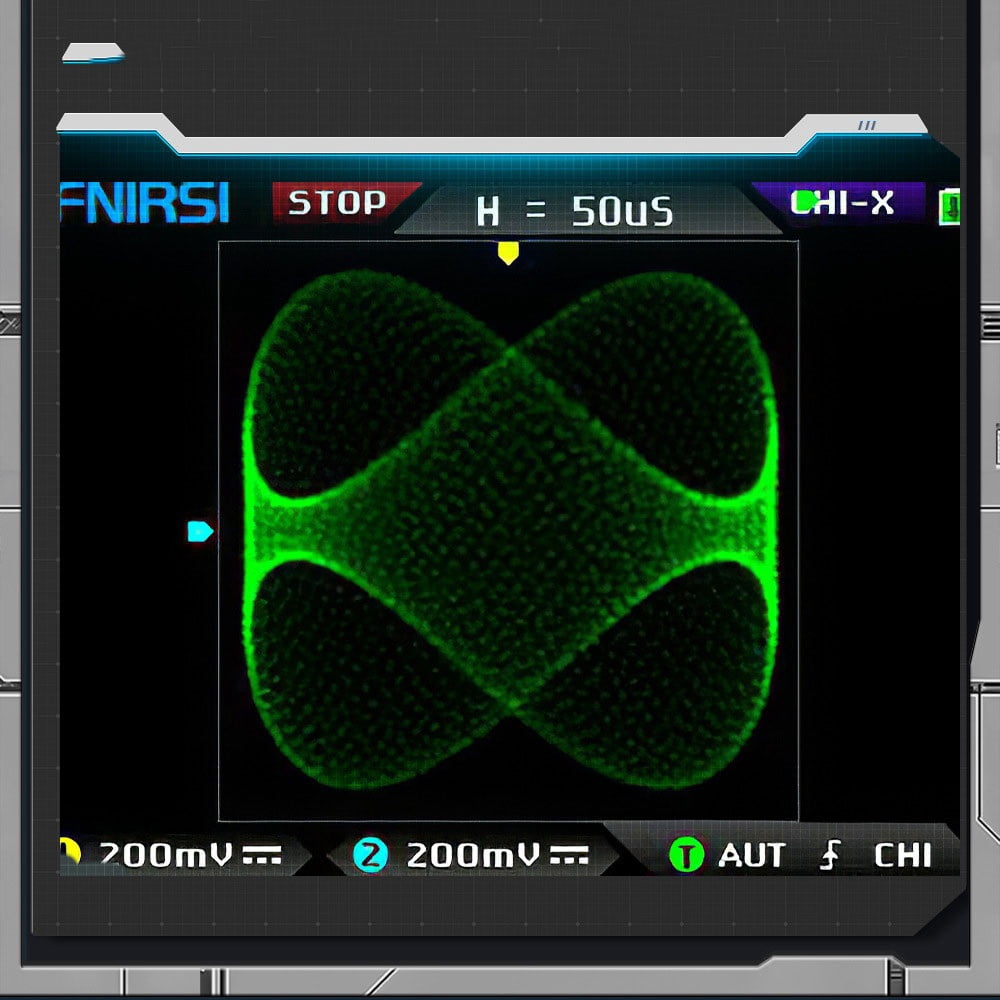

• Digital fluorescence XY mode: Supports digital fluorescence technology. A closed curve graph generated by dual channels can be used to compare the amplitude, frequency, and phase of two sets of signals
• 5mV high sensitivity: The analog front end of the ultra-high waveform signal-to-noise ratio uses excellent shielding measures and a stable feedback system. All parts with interference sources are far away from the analog front end
• 20M hardware bandwidth limit: The analog front end has a built-in switchable 20MHz hardware bandwidth limit component. After turning it on, the -3DB attenuation bandwidth is 20MHz
• 20M function signal generator: The built-in 20MHz DDS function signal generator has 14 standard function signals, the output amplitude is fixed at 1VPP, the maximum sine wave frequency is 20MHz, and the maximum frequency of other waveforms is 10MHz

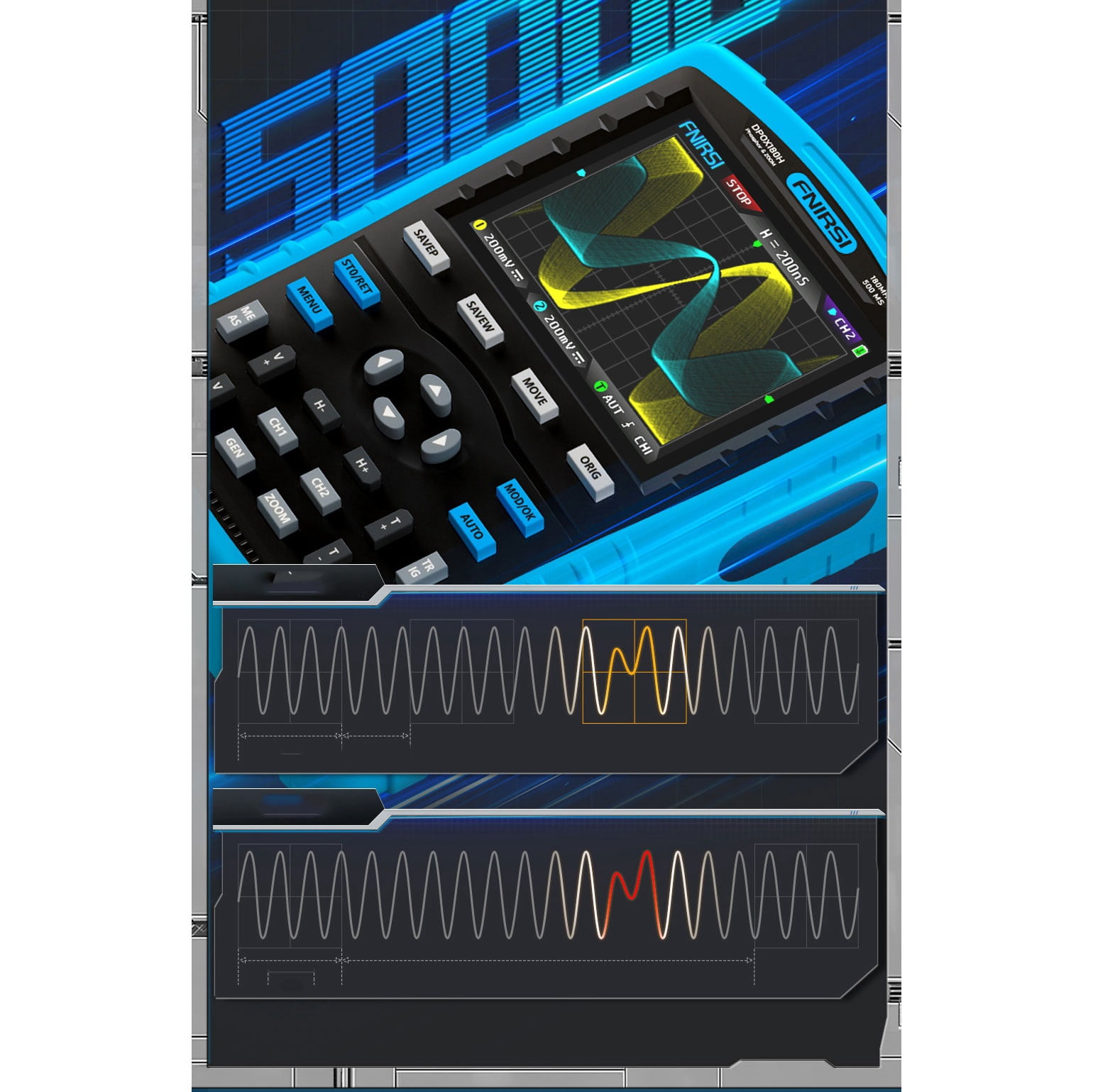

• Special clipping output function: Cut a part or the whole part of the various signals measured by the oscilloscope as the output signal of the signal generator. Up to 500 custom signals can be stored
