Insulation Resistance Tester, Wireless Voltage Tester Non-contact High Voltage Detector High-voltage Electroscope ES9080

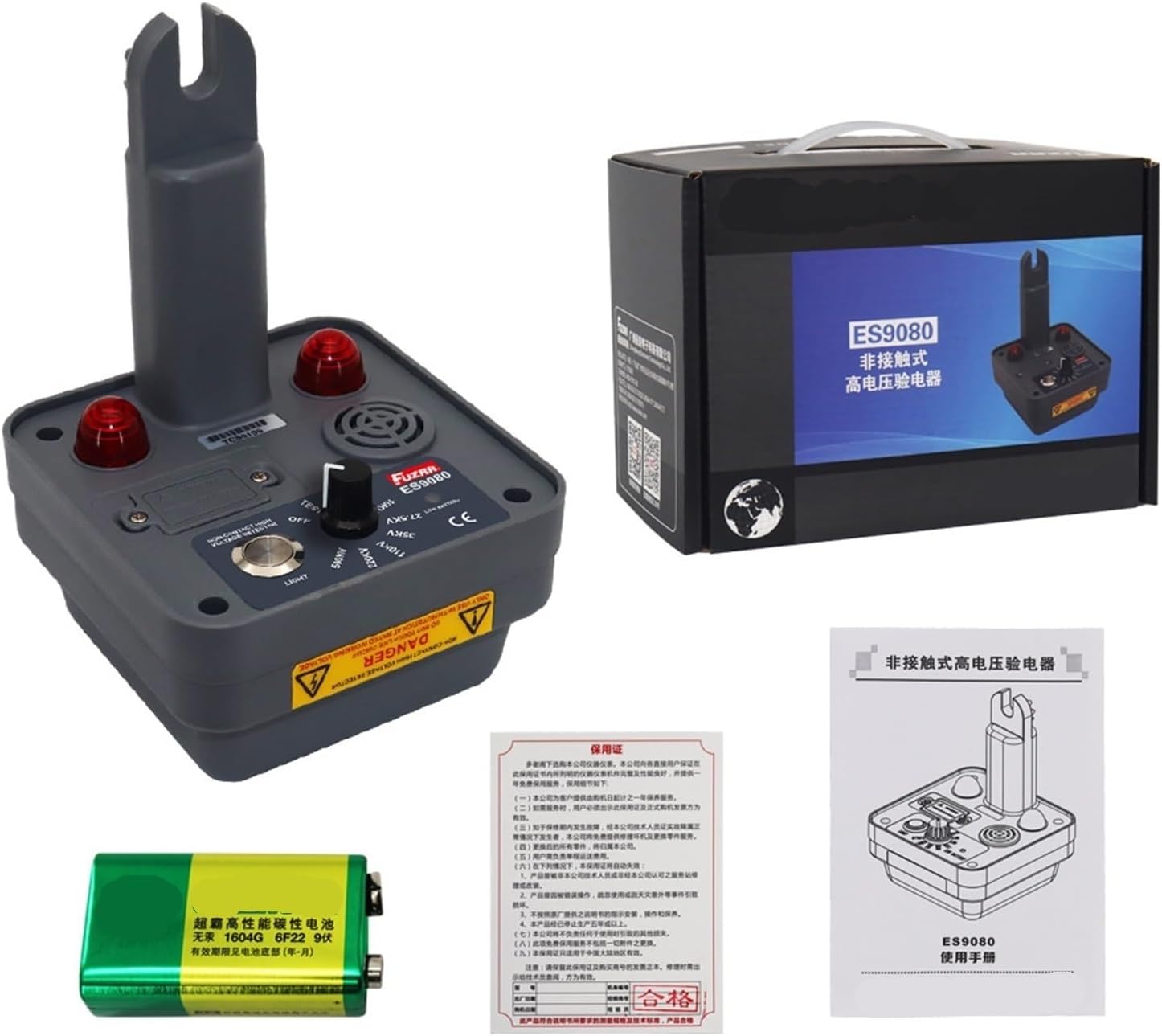

Specification:Function：Voltage detection, cable trackingReference Conditions：23℃±5℃，Below75%rhVoltage Ranges：380V；6KV；10KV；27.5KV；35KV；110KV；220KV；500KVInsulation rob：4 sections 3.5 meters（Optional）Power Supply：DC 9V（6F22 1PC）Instrument size：115mm (L)×115mm (W)×169mm (H)protection class：IP65Indicating function：Sound and light Indicating when the detection voltage exceeds the setting voltageWeight：390g（With battery）Operating temperature and humidity：－10℃～+50℃＜85%RHStorage temperature and humidity：－15℃～+55℃＜90%RHSafety regulations：EN 61326-1 CISPR 11EN 61000-4-2 EN 61000-4-3EN 61000-4-8Package List:Instrument：1 set9V attery：1 sectionColor box：1 pieceInstructions, warranty：1 set

• -ES9080 The Non-contact High Voltage Detector is safe and reliable with contactless design, which is used to check whether there is AC high voltage and low voltage.
• -The instrument has the functions of sound prompt, light prompt, self check, compatibility with most insulating rods, etc. The whole machine is beautiful, high-end, wide range, easy to use, convenient to carry, high-precision, reliable, stable performance, strong anti-interference ability.
• -ES9080 The Non-contact High Voltage Detector has IP65 protection grade and shockproof structure, which is suitable for the harsh working environment.
• -It is suitable for the non-contact detection of live voltage, the detection of cable fault, the inspection and detection of live high-voltage cable, the tracking of field wires, the detection of residual voltage or induced voltage and other detection needs.
• -ES9080 The Non-contact High Voltage Detector has 8 voltage detection levels, and the rated test voltage range is 380v-550kv.
