Magnetic Drill Press 980W 1100W 1200W Electric Bench Drilling Rig Machine for Engineering Steel Structure (1 MD40)

Weight : 13.6KgModel Number : MD40,MB23,BRM35Certification : CEMax. Drilling Diameter : 40mmRated Input Power : 1100WFrequency : 50/60HzApplication : steel structure, shipbuilding, bridge engineering, wind power generatiDrill Type : Magnetic DrillPower(MB23) : 1200 WMax Drilling Diameter(MB23) : 23 mmMaximum Recommended Drill Size(MB23) : 1-23mmTool Holder(MB23) : MT2 More TaperMaximum Travel(MB23) : 210mmMagnetic Adhesion(MB23) : 13500NMD40 SpecificationsMaximum Boring Diameter: 1.57 (40mm)Maximum Boring Depth: 5 (125mm)Rated Frequency: 60 HzRated Input Power: 1100 WSpindle Speed (No-load Speed): 550 RPMStainless-Steel Pot: 21.36 Cubic Inch/350ml2700 lbs (12000 N) Max Magnetic Force** (Thinner Metal = Less Force)Toolholder: 3/4 in(19.05 mm) Weldon ShankOverall Weight: 30 Lbs (13.6 Kg)BRM35 SpecificationsModel: BRM-35Power: 980 wattsIdle speed approx : 680 rpmMax. Drilling (with core drill): 12-35mmMax. Drilling depth (core drill): 2"(50mm)Max. Drilling (with full drill): 1.5-13 mmMax. Travel distance: 125 mmMagnetic holding force: 10,000 N(2250Lbs)Magnetic foot dimensions ca: 160 x 80 mm

• Powerful drilling capability: The maximum drilling diameter can reach 40mm, which is suitable for drilling needs of various steel materials and structures, suitable for shipbuilding, steel structure, wind power generation and other projects

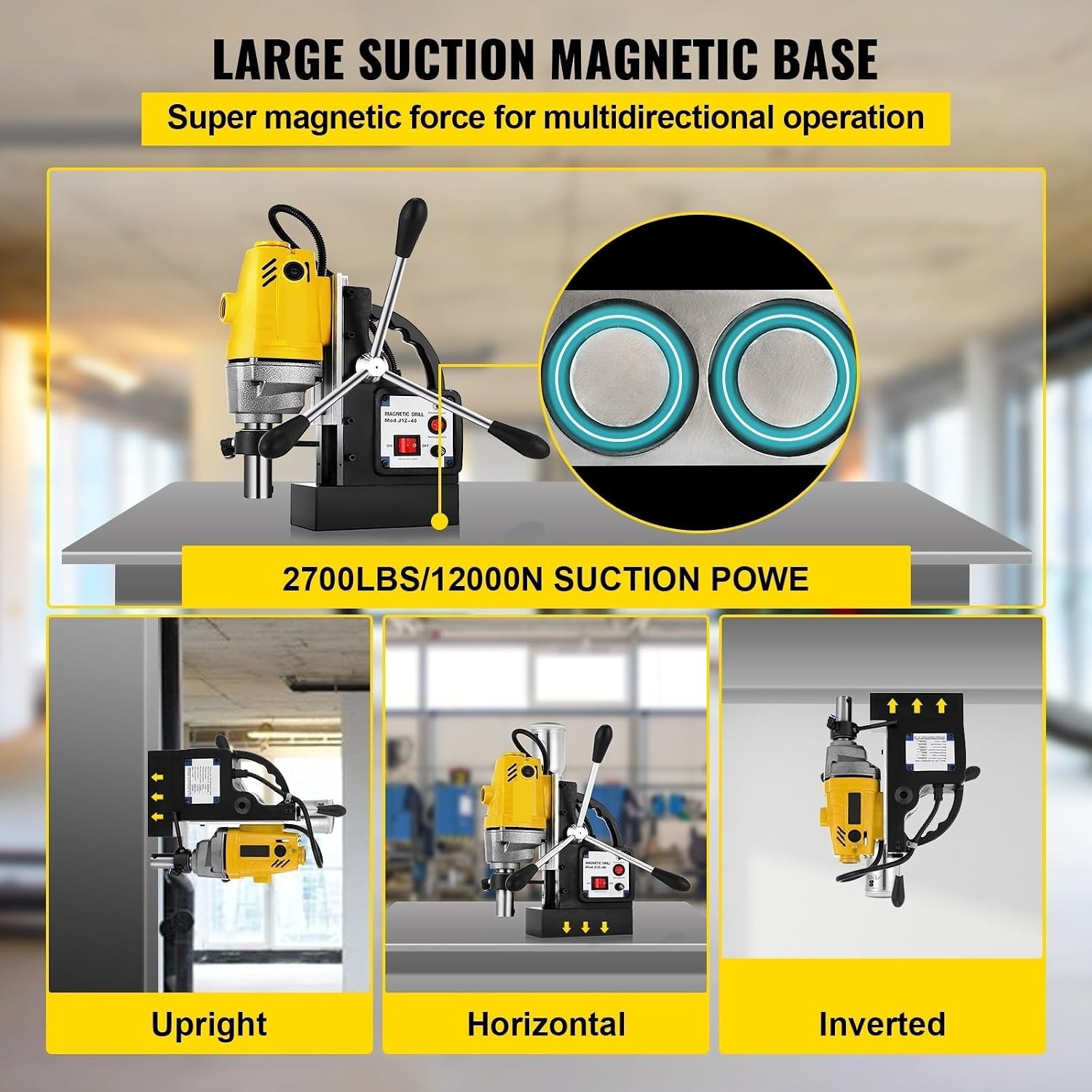

• High magnetic adhesion: Provides a maximum magnetic adhesion of 13500N (about 2700 pounds) to ensure the stability of the equipment during drilling and reduce sliding and vibration
• High power output: With a rated input power of 1100W (MD40) to 1200W (MB23), it provides strong power and is suitable for most industrial-grade drilling operations
• Multiple specifications to choose from: Provide different models (MD40, MB23, BRM35) to meet the needs of different drilling diameters and depths, and flexibly adapt to various operating conditions
