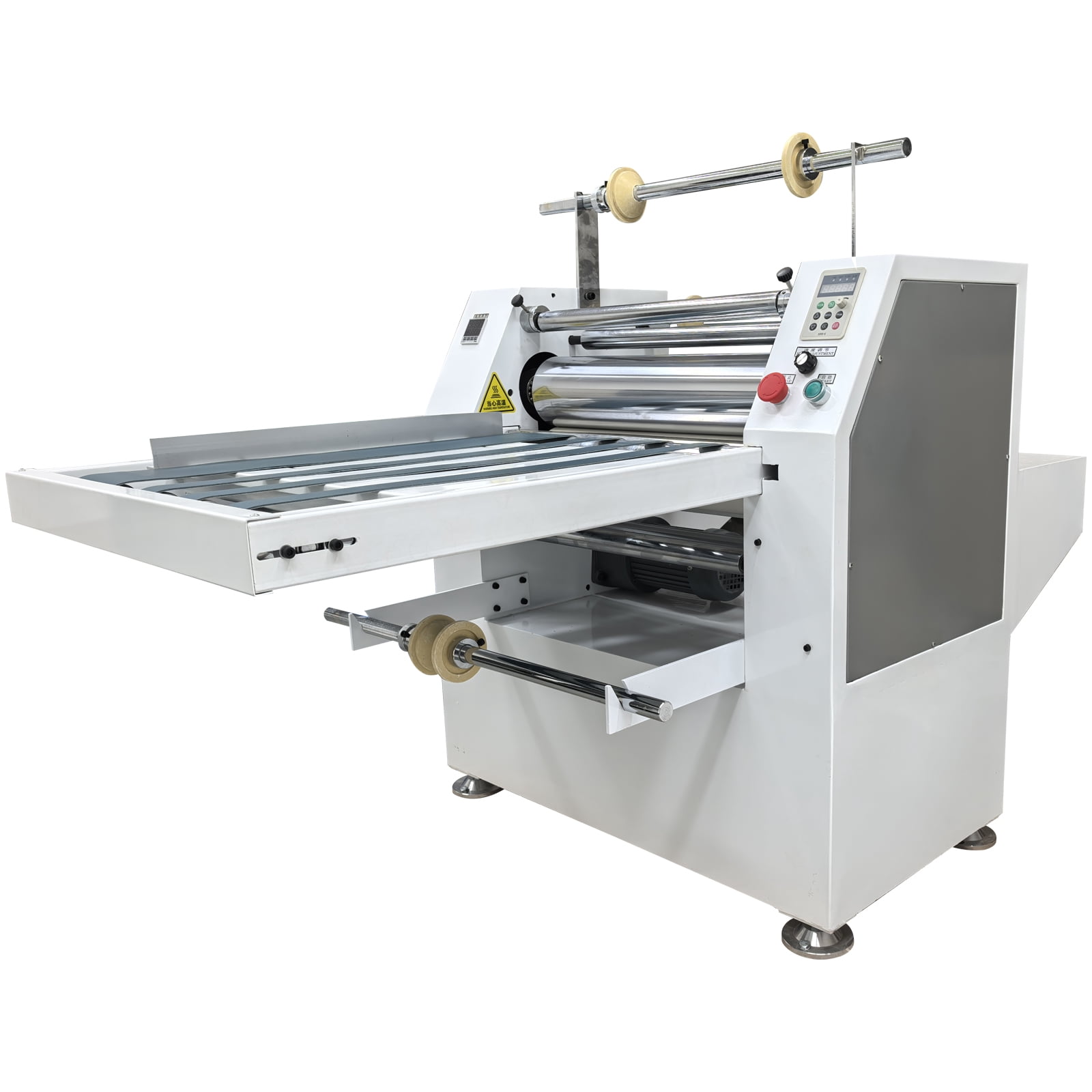

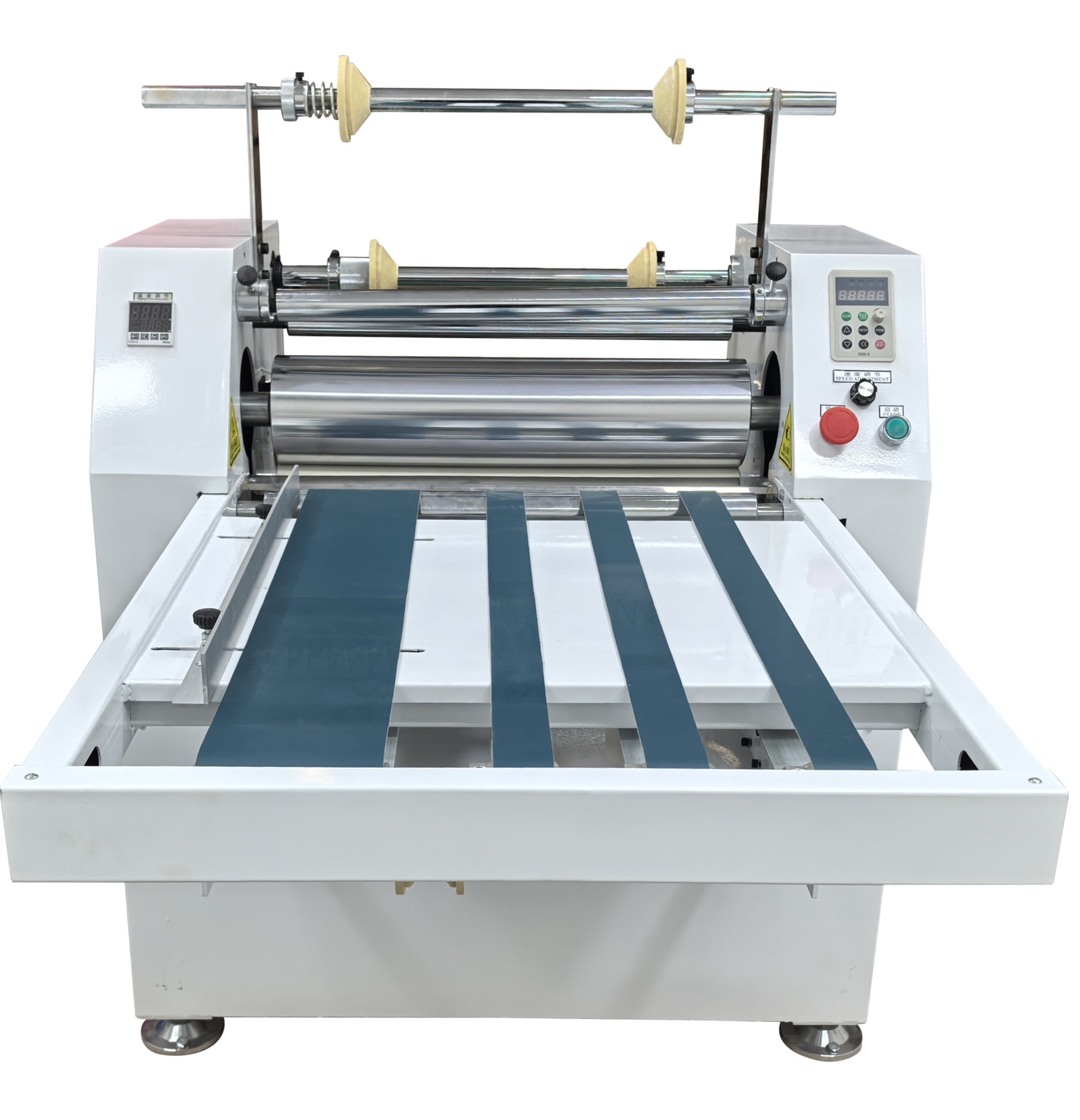

Steel Roller Thermal Laminator Film Hot Roller Laminating Machine with Conveyor Belt and Winding System

Product Overview: <br>The automatic steel roller thermal laminating machine is a professional and efficient laminator, which can continuously press the films (BOPP film, pre-coating film, protective film, etc.) with the printed matter to make the printed matter have smooth surfaces, bright colors and clear lines. It has the advantages of resisting water, keeping cleanliness and increasing the strength of the paper. The machine is applicable to paper, packaging cartons, ABS coils, non-woven materials and so on, is an ideal device for improving the printing product quality. <br>This machine can achieve single-sided lamination and roll-to-roll combination. It has a compact structure, stable, safe and reliable operation and small occupied space. It is easy to move and suitable for different application scenarios, such as printing shops and packaging factories. <br> <br>Product Parameters: <br>Model: ZXFM-520J <br>Maximum laminating width: 450mm (17.72in) <br>Applicable material: ≤8mm (0.31in) in thickness <br>Laminating speed: 0~15m/min (0~49.21ft/min) <br>Stepless variable-frequency speed regulation <br>Laminating temperature range: 0~140˚C <br>Pressure range: Cam Spring type Pressurization <br>Heating mode: Electric heating built-in mirror tube <br>Feeding frame: Conveyor belt type automatic feeding frame <br>Collecting and unwinding frame: Manual deviation correction fine adjustment film unwinding frame, backing paper winding, discharged material winding <br>Voltage: 110V <br>Total power: 2Kw <br>Machine size: 90*142*110cm (35.43*55.91*43.31 inches) <br>Net weight: 159KG (350.53LBs) <br> <br>Precaution: <br>1. The surface of the roller should be kept clean. If it is found that the surface impurities cannot be scrubbed off, the roller should be removed and polished. In the process of operation, when the film adheres to the roller, the machine stops, and then the machine can start operation after the roller is cleaned. When cleaning the roller, be careful to prevent the cloth or hands from squeezing in, causing personal injury and roller damage. <br>2. When the machine is not working, the rollers should be separated from each other, so that the rubber rollers are in a loose state, so as to prevent the rubber rollers from being damaged by compression deformation. <br>3. The connecting bolts of each component should be checked frequently. <br>4. The machine must be reliably grounded to prevent electric shock. <br> <br>Operation Method <br>1. Assemble the machine correctly, and install the film roll, the backing paper winding roll and the finished product winding roll appropriately. <br>2. Connect the machine to the 110V power supply with reliable grounding. <br>3. Turn on the power switch, set the heating temperature as needed, and the machine starts heating. <br>4. After the laminating temperature reaches the set temperature, turn on the start button, and the machine starts running. <br>5. Place the paper to be laminated on the conveying platform, and the paper is automatically fed into the machine and subjected to laminating operation. <br>6. In the laminating process, the backing paper can be automatically wound, and the finished product is also automatically wound. <br>7. After accomplishing the laminating operation, press the stop button, disconnect the power supply, use the adjusting handwheel to separate the rollers to avoid roller deformation, and clean the machine thoroughly. <br> <br>Item included (120130): <br>Steel Roller Thermal Laminator 110V

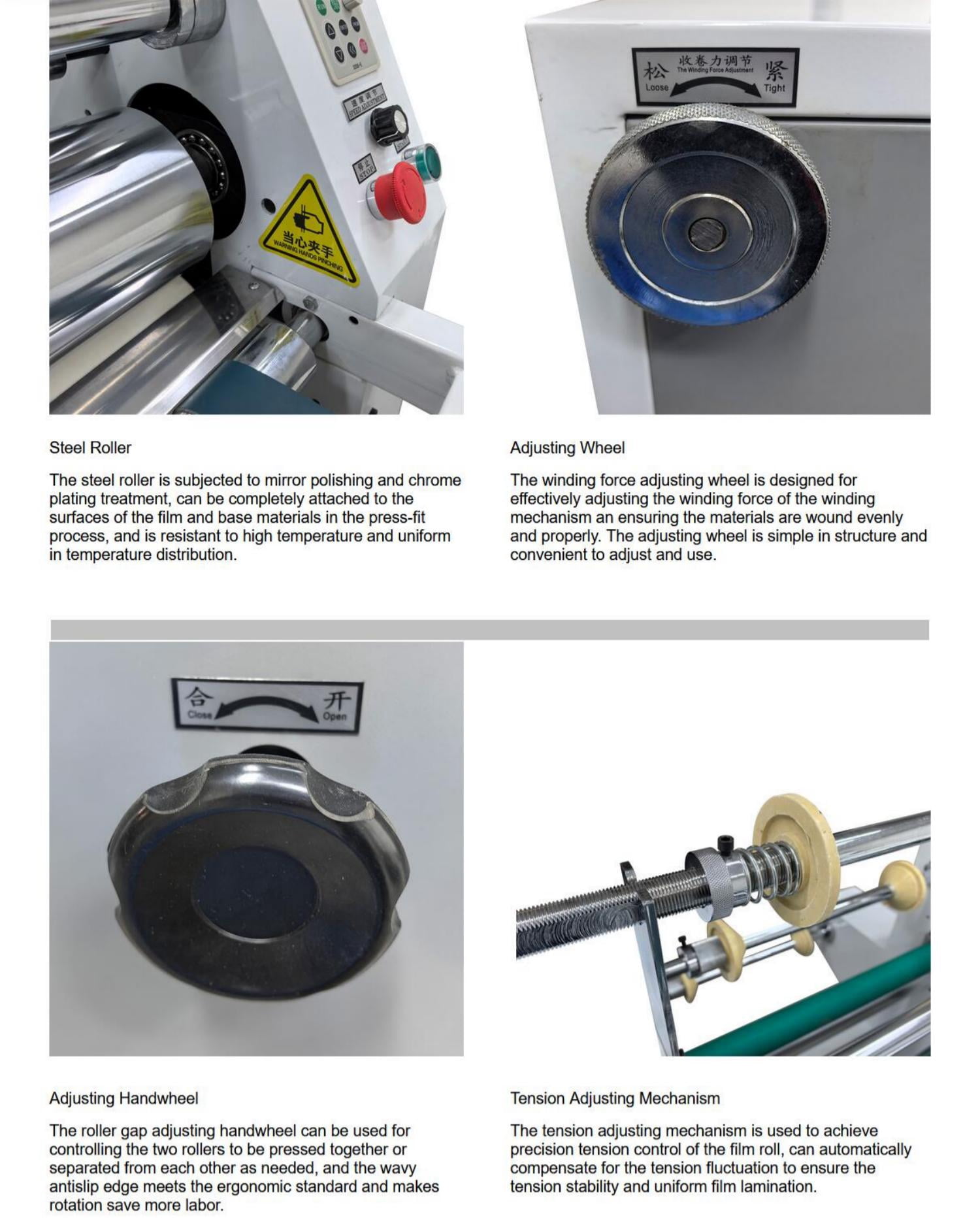

• ‌Premium Steel Roller Lamination System: Mirror-polished chrome-plated steel rollers ensure uniform temperature distribution and firm adhesion to various films, delivering smooth, bright finished prints.

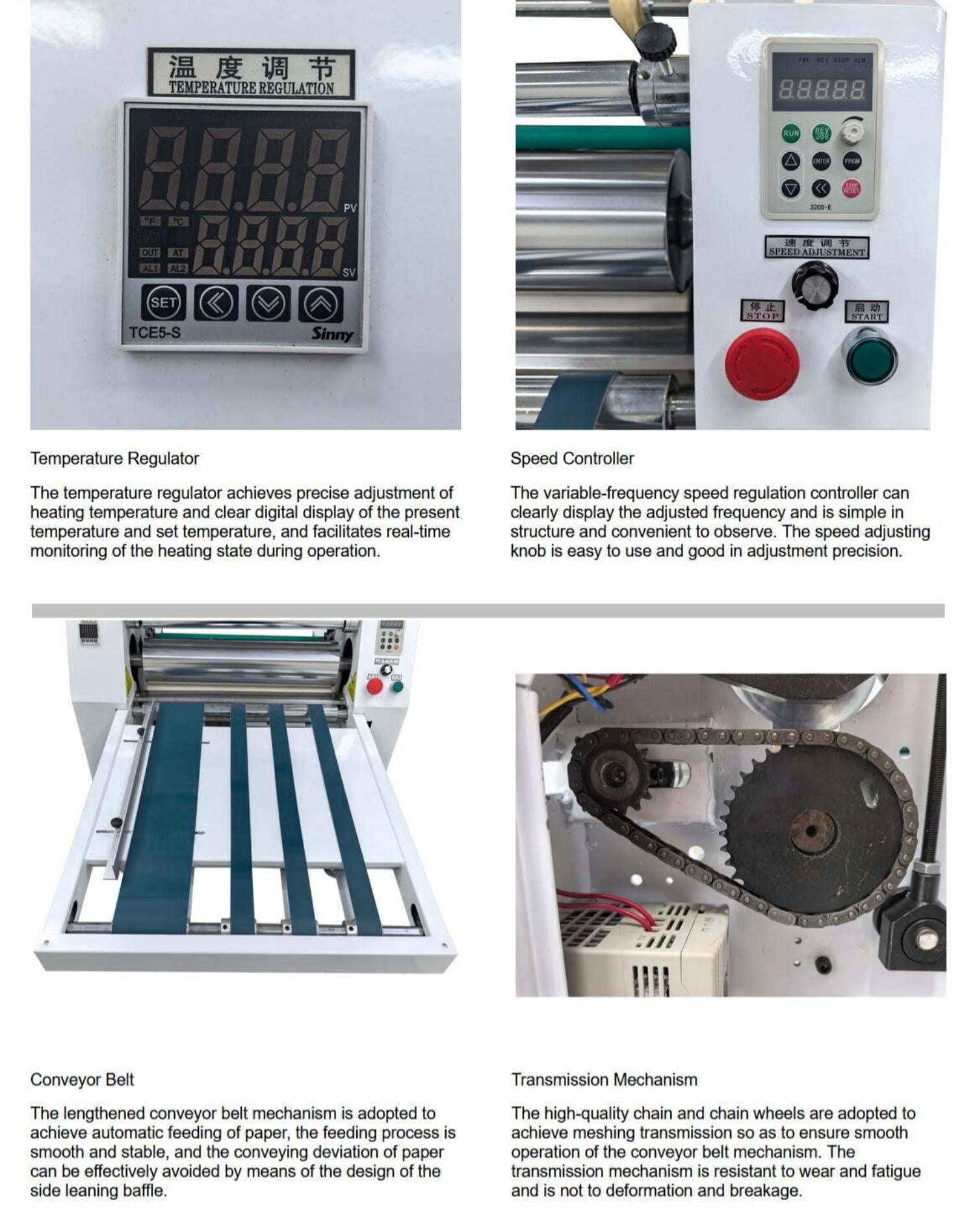

• Precision Temperature and Speed Control: Digital temperature regulator for accurate heating adjustment; variable-frequency speed controller with clear display, enabling customizable lamination settings for different materials.
• Stable Transmission Design: Lengthened conveyor belt with side baffles prevents paper deviation; high-quality chain transmission ensures smooth, wear-resistant operation for continuous use.
• Adjustable Winding and Tension System: Winding force adjusting wheel and tension control mechanism ensure even, stable film winding, automatically compensating for tension fluctuations during roll-to-roll lamination.
• Efficient Industrial Use: 110V automatic thermal laminator supports single-sided and roll-to-roll lamination, ideal for print shops, packaging factories to process paper, cartons, non-woven materials and more.
