Time Relay 12v 24v 220v 230v AC/DC Power On Delay Timer Relay with Time Adjustable 0.1 Second to 10 Days Din Rail(AC 220V)

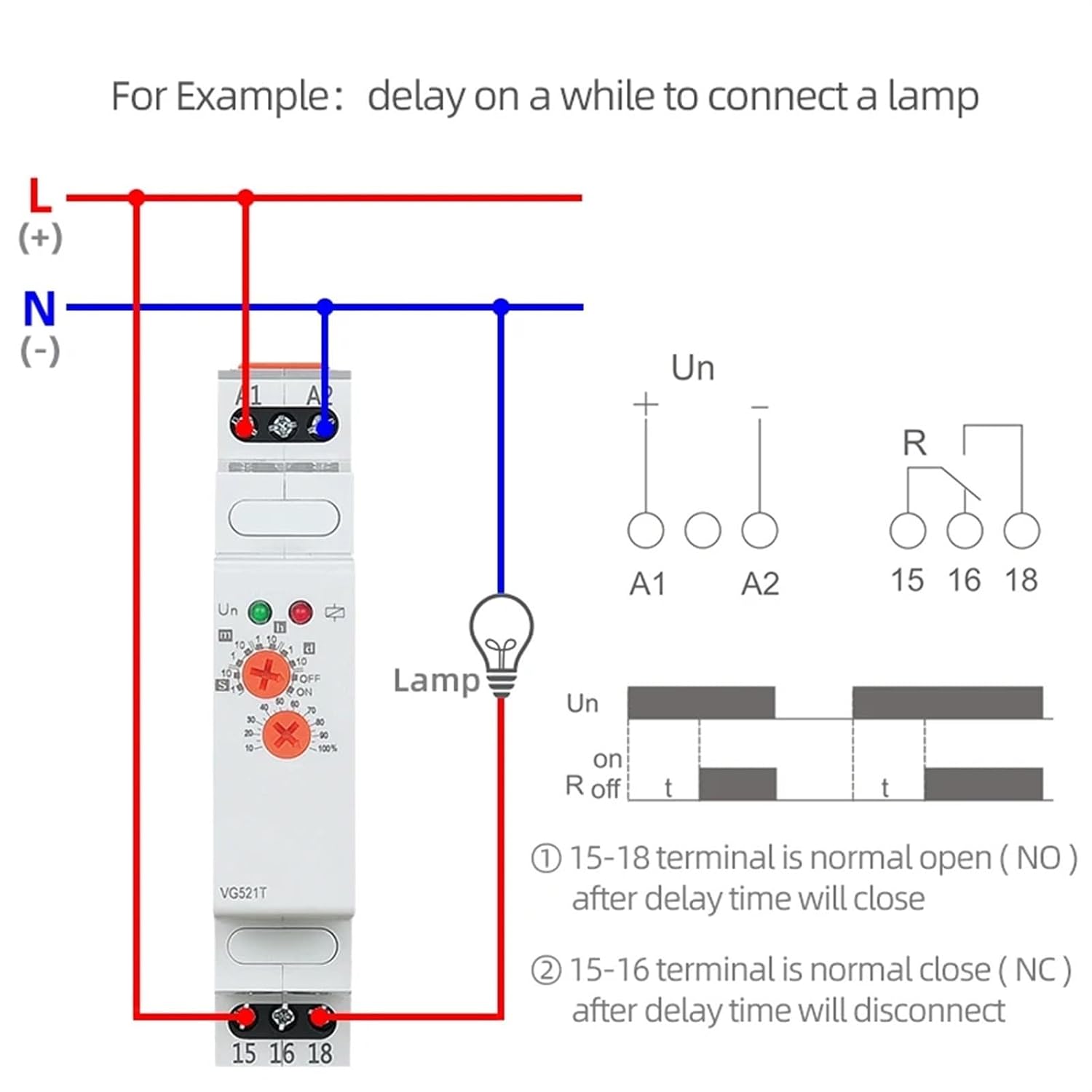

RelaysPower Delay Relay, Time Relay 220v, Timer Relay 220v, Power On Delay RelayRelay type:On Delay Time RelayFunction Description:The period "t"begins on energisation. After , the output "R"close.:Rated supply voltage:220 VAC or 12-240 VAC/DCSupply frequency: 50/60 HzTime delay range:0.1 Second - 10 DaysOperating temperature:-20~+55Storage temperature:-30~+70Setting accuracy-full range:±5%Contacts type:1 C/O (SPDT)Rated current:5A/240 VAC,24 VDC (Resistive Load)Discrete Output Type:RelaySize:Width (18mm) × Depth (65mm) × Height (90mm)Applications:Automatic door and gate openers, building automation, cranes, pump controlpanels and pumping units, automated awnings, blinds, shutters, elevators,control systems, timers and lighting controls.Delay time adjustable on front by rotary switch: 10...Green LED indicator for power onRed LED indicator for relay state; flashing for delay and steady when relay energised"Blade + cross" both flat blade and crosshead screwdrivers can be use on rotary selectors and terminals35 mm Din rail mount
