TK15 DC8-80V 50A 100A 350A Coulomb Counter Meter Capacity Tester Coulometer Lithium Indicator Detector(80V 100A)

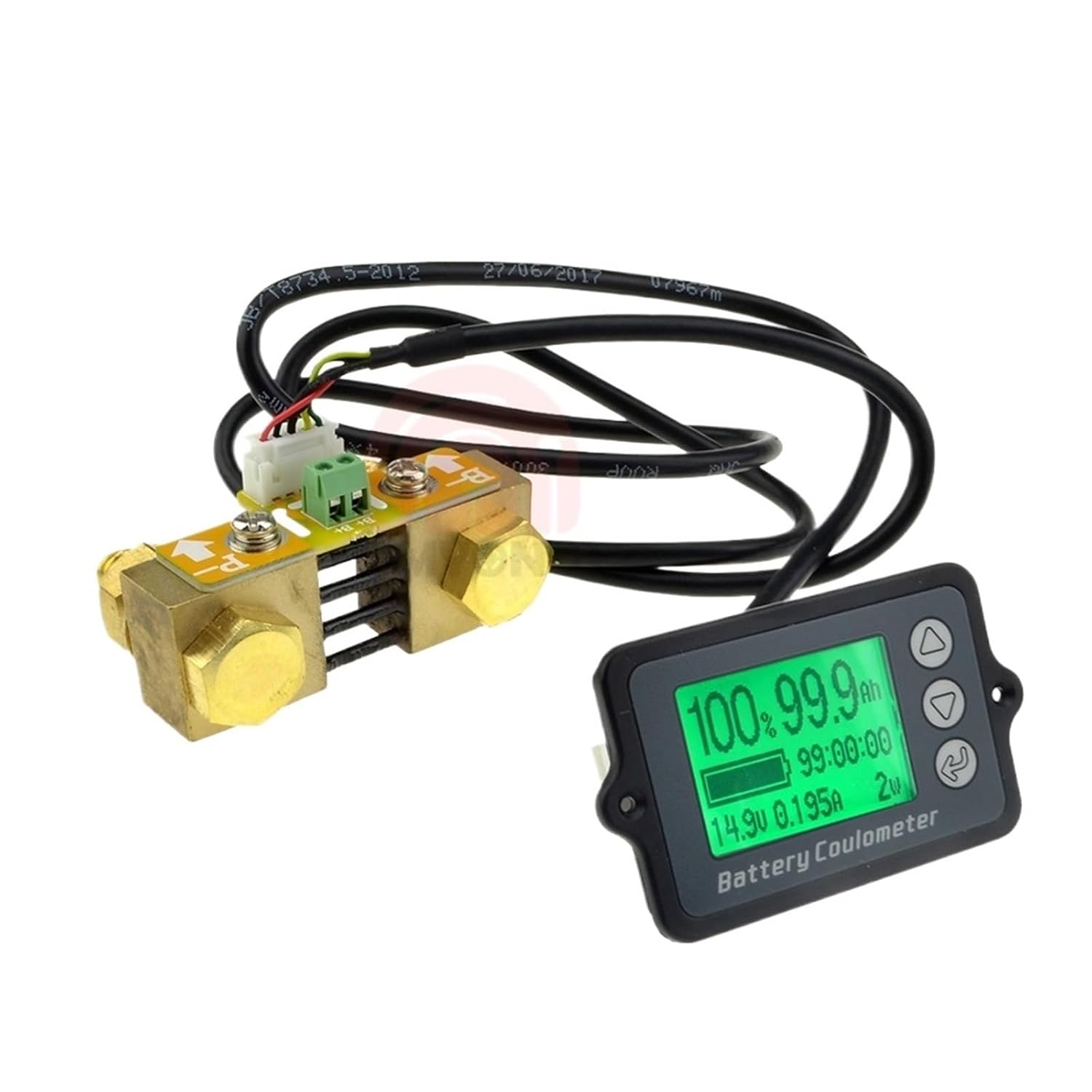

AmmetersTK15 DC8-80V 50A 100A 350A Coulomb Counter Meter Capacity Tester Coulometer Lithium Indicator LiFePo Detector for Portable Equipment E-bike Balance Car Cleaning MachineOverview:TK15 is a kind of high precision current type capacity tester(also known as coulometer),which can test voltage,current and capacity of to help users know state of in time. TK15 has memory function. It is suitable for mobile and portable equipment,e-bike,balance car,cleaning machine,instrument,ups and so on.Desciption:Type: testerModel: TK15Operating voltage range: DC8-80VCurrent: 50A/100A/350AOverall Size: 66x40x10mmDisplay area size: 32x23mmExternal normal Sampler Size:23x18x5mmTechnical Parameters:Working power consumption: 8.0mA (Max:10.0mA)Standby power consumption: 0.5mA (Max:0.8mA)Sleep power consumption: 50uA (Max:60uA)Voltage acquisition accuracy: +/-1.0%Current acquisition accuracy: +/-1.0%Using ambient temperature rang: 0-35CBacklight on current: 40mA (Max:50mA)Backlight off current: 30mA (Max: 40mA) capacity setting value: 0.-590AExternal normal sampler working current:30.0A (Max:50A)External big sampler working current:50.0A (Max:100A)Attention: min voltage of pack should higher than min working voltage of coulometer.Features:1. empty and full voltage of can be adjusted2. backlight automatic open when using3. Automatic memory function when power down4. Fast response rate5. Low power consumption, automatic wake-upDisplay:1. Residual capacity of (Ah or mAh)2. Capacity percentage and totem pole display3. voltage4. current5. Powe output6. Remaining time of charge and dischargePackage Included:80V 50A: 1pcs 80V 50A Coulomb Counter + shielded wire80V 100A:1pcs 80V 100A Coulomb Counter + shielded wire80V 350A:1pcs 80V 350A Coulomb Counter + shielded wire
