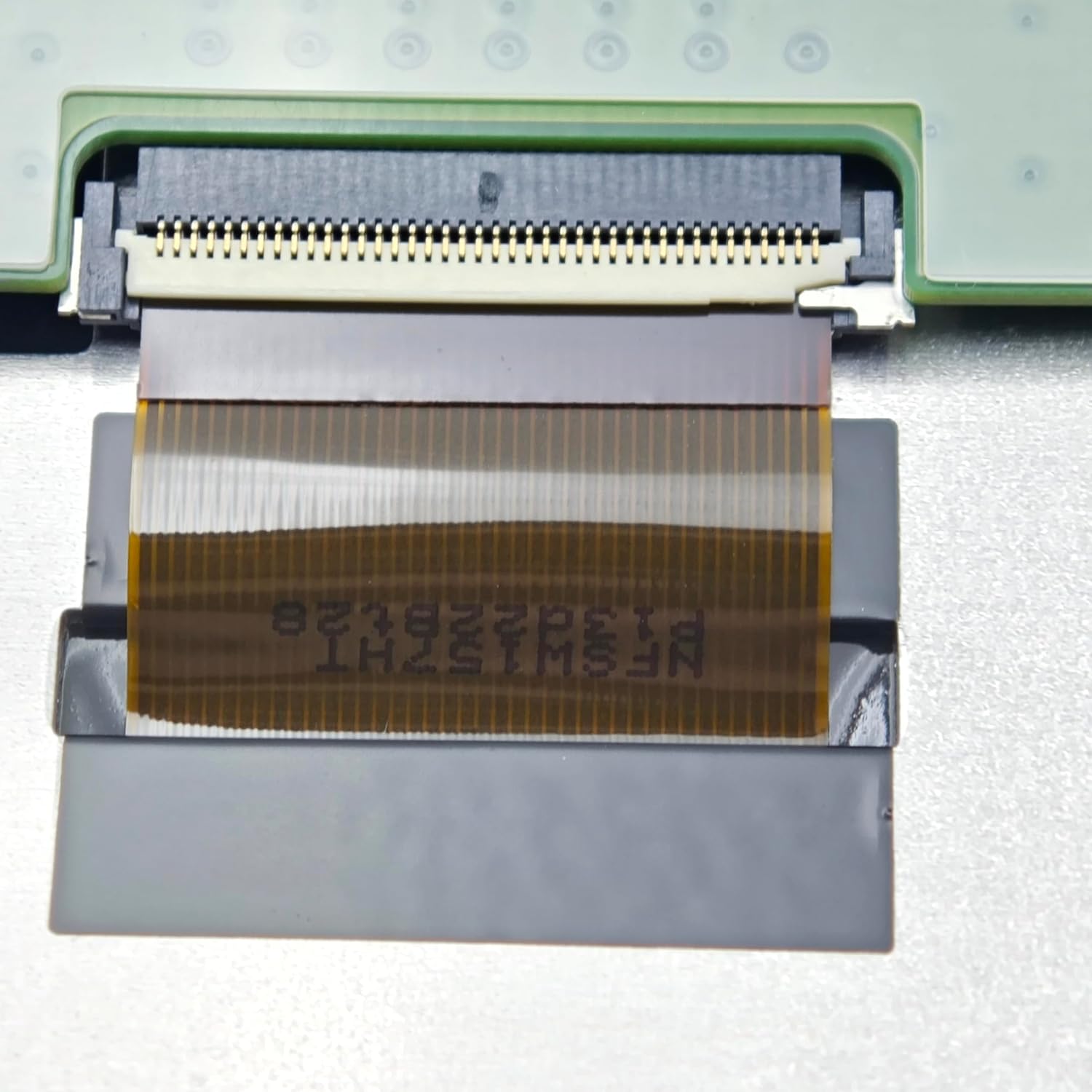

TX23D202VM0BAA 9.0 Inch TFT-LCD Display Module 800×480 WVGA Resolution LVDS Interface for Industrial Control Equipment

This 9.0 inch a-Si TFT-LCD display module features 800×480 WVGA resolution with 15:9 aspect ratio. Pixels are arranged in RGB vertical stripe pattern. IPS display technology provides excellent image quality and wide viewing angles.Specifications: - Display Size: 9.0 inch diagonal - Panel Type: a-Si TFT-LCD - Resolution: 800 × 480 (WVGA) - Aspect Ratio: 15:9 - Display Type: IPS, Normally Black, Transmissive - Active Area: 196.8mm × 118.08mm - Outline Size: 218mm × 135mm × 11.45mm - Brightness: 500 cd/m² (Typ.) - Contrast Ratio: 1000:1 (Typ.) - Display Colors: 262K / 16.7M (72% NTSC) - Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) - Good View At: Symmetry - Response Time: 40 ms (Typ.) (Tr+Td) - Backlight: 3S7P WLED, Edge light type, 100,000 hours - LED Driver: Built-in - Touch Screen: Without - Interface: LVDS (1 ch, 6/8-bit), 20 pins connector - Input Voltage: 3.3V (Typ.) - Power Consumption: 4.8W (Typ.) - Frame Rate: 60Hz - Panel Weight: 330g (Typ.) - Operating Temperature: -40℃ to +85℃ - Storage Temperature: -40℃ to +90℃ - Vibration Resistance: 5.0G (49.0 m/s²)Application: - Industrial HMI and control panels - Automation equipment displays - Instrumentation and test equipment - Medical equipment screens - Outdoor or extreme environment industrial displays

• 9.0 inch a-Si TFT-LCD display module with 800×480 WVGA resolution and 15:9 aspect ratio for industrial applications
• IPS display technology with Normally Black and Transmissive mode for 85/85/85/85 wide viewing angle
• 500 cd/m² brightness with 1000:1 contrast ratio and 262K/16.7M display colors (72% NTSC)
• Ultra-wide operating temperature range from -40℃ to 85℃ for extreme harsh environments
• LED backlight with 100,000 hours rated life, built-in LED driver for easy integration
